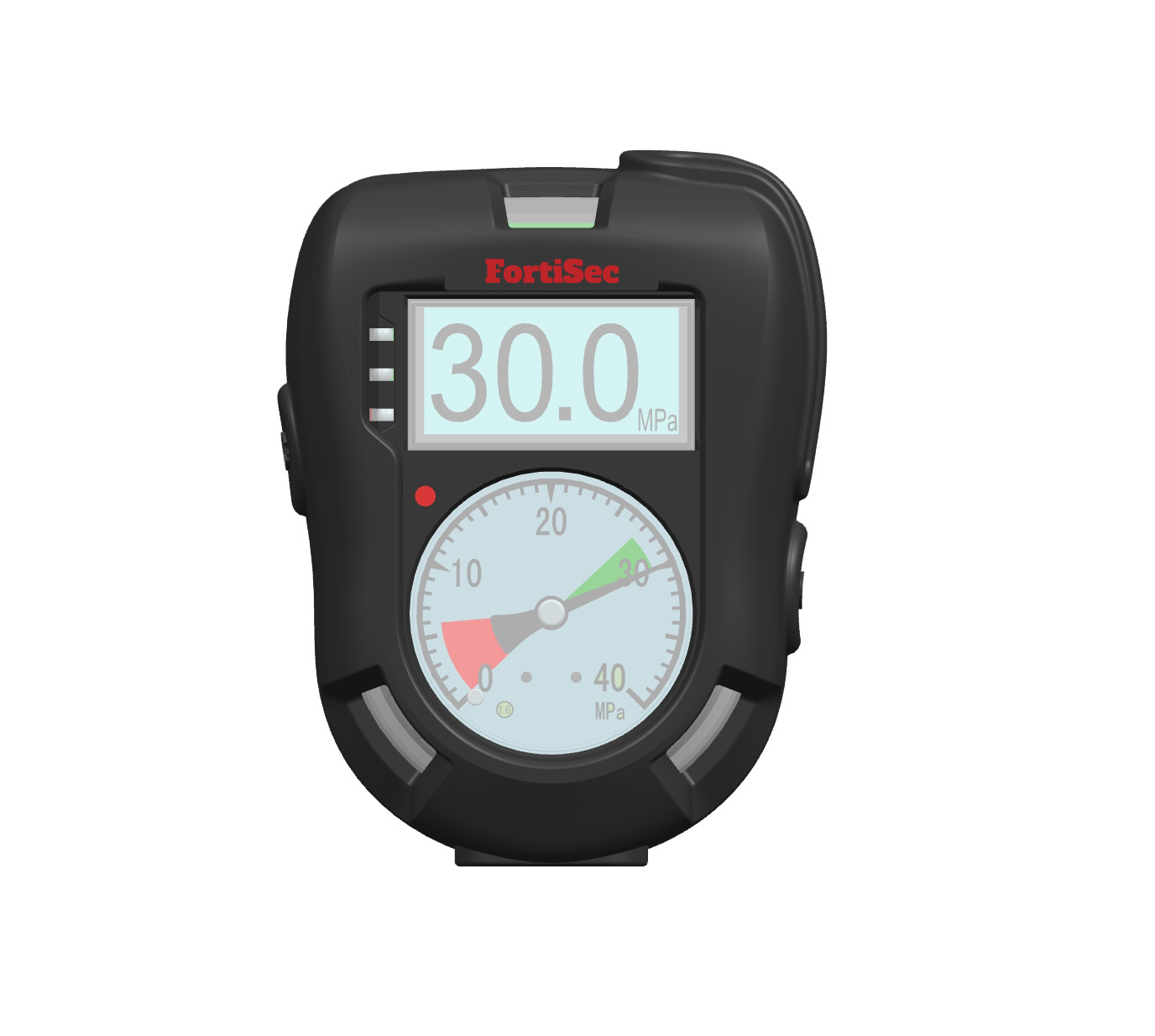

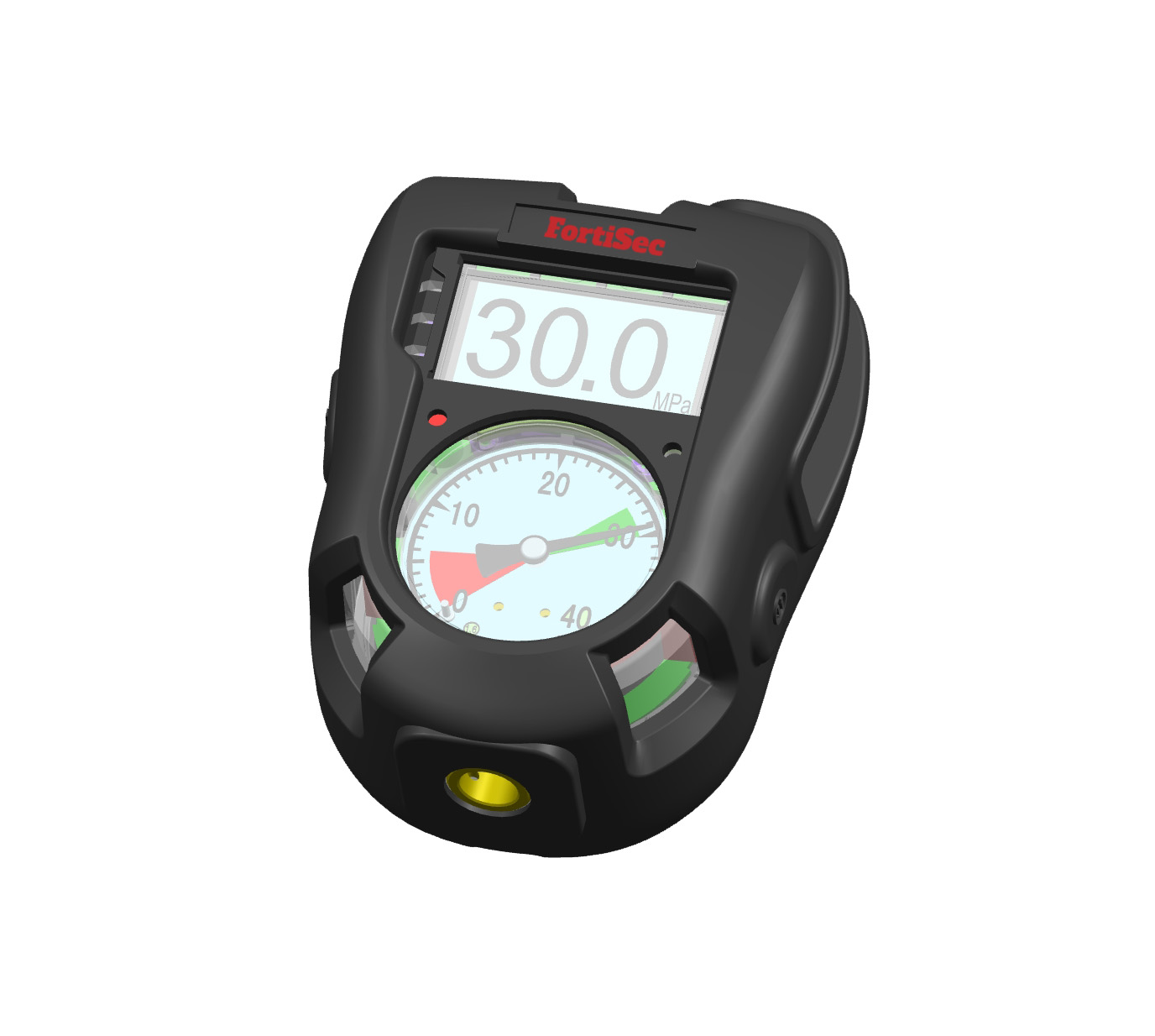

It is used to monitor the gas volume of the positive pressure air respirator cylinder and display the remaining gas volume and remaining use time of the current gas cylinder in real time. At the same time, it integrates functions such as ambient temperature monitoring and distress alarm.
The gas cylinder volume information is sent to the HUD via Bluetooth, and the cylinder gas volume can be viewed in real time without picking up the device.
Instructions:
Open the gas bottle and it will automatically turn on and connect to the HUD.
Dual-channel acquisition sensor.
Digital display, gas volume remaining usage time display, SOS alarm, temperature monitoring.
The standby time is more than 1 year, and the continuous working time is more than 80 hours.
IP67.
Ex ia Ⅱ C T4 Ga.
Fire & Rescue Services
Industrial Safety & Hazardous Areas
Oil & Gas / Petrochemical
Mining & Quarrying
Maritime / Shipyard / Offshore
Construction & Heavy Industry
Confined-Space Work / Infrastructure Maintenance
Mechanical dial
Smart alarm
Electronic display
Temperature monitoring
Quick rescue calling
| Item | Value |
|---|---|
| Theoretical Standby Time | ＞ 1 year |
| Continuous Working Time | ＞200h (without HUD) |
| Continuous Alarm Hour | ＞3h |
| Volume of the Alarm Sound | ＞90dB (1 meter away) |
| Continuous Working Hour (Under-Voltage) | ＞2h |
| Working Temperature | -30°C ~ 70°C |
| Pointer Display Accuracy | Class 1.6 |
| Ingress Protection | IP67 |
| Explosion Proof Grade | EX ia IIC T4 Ga |
| Battery | 2 AAA Batteries 1.5V |
